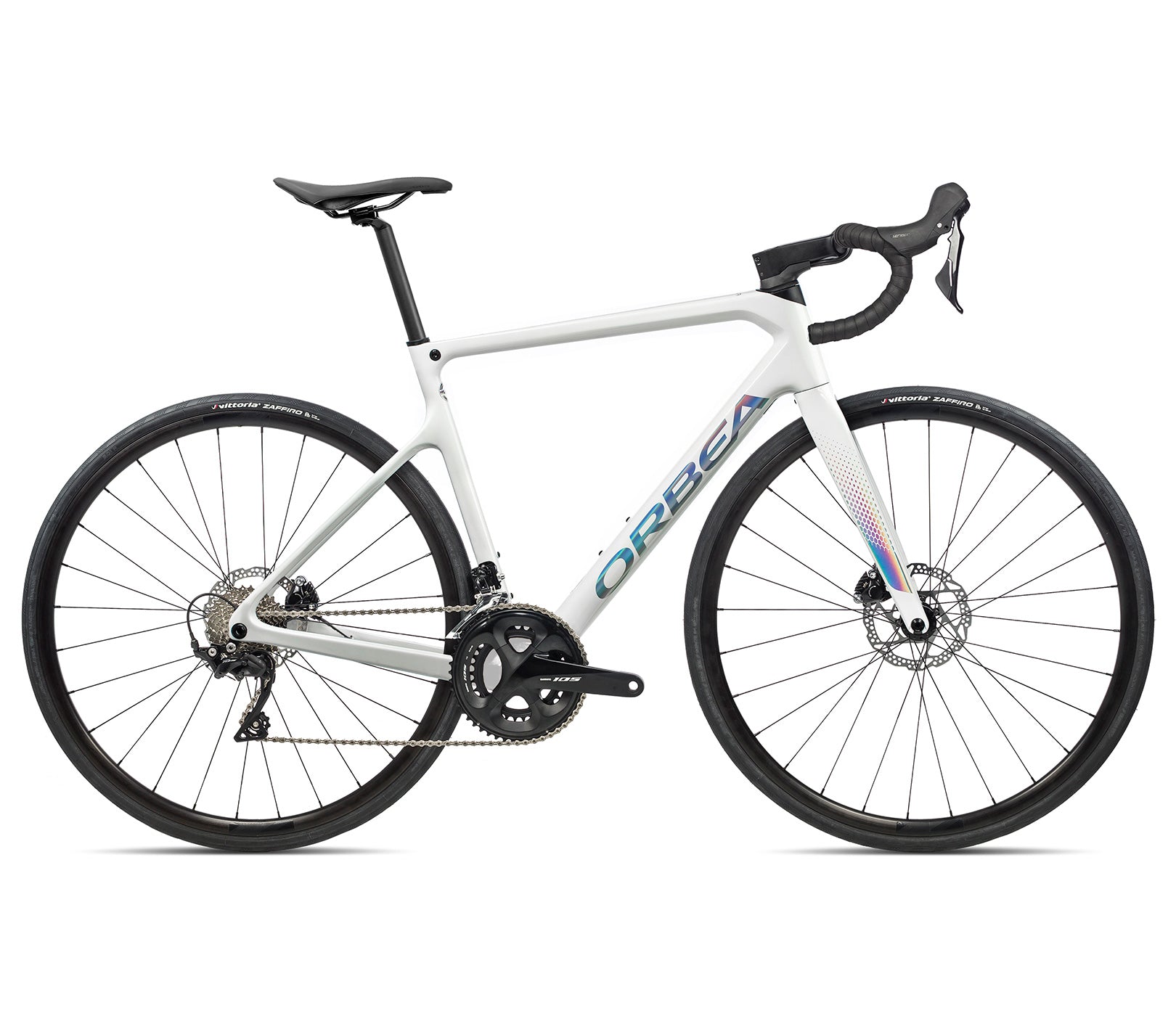

ORBEA ORCA M30 WHITE IRIS GLOSS FACTORY COMPLETE ROAD BIKE

$4,599.00

Product Type: Road Bike

Vendor: ORBEA

Size
Color
WHITE - IRIS (GLOSS)
Out of Stock
Unavailable

Ready to roll

We've a selection of Orbea in store, as well as frames ready to order.  Our Orbea collection includes ready to ride complete bicycles, and custom-built or custom-colour options. Please call us with any enquiries.



ORBEA ORCA M30 FACTORY COMPLETE ROAD BIKE SIZE 51, 105 SHIMANO GROUPSET



THE ORCA M30 Rider ...



Either you're looking to upgrade or looking for your first sensational bike. The Orca M30 is an incredible way to enter the carbon bike market. The specs and what they mean are written below. But if you want to read between the jargon to really understand why the Orca M30 is a great choice, the first thing to know is that its fast, easy to handle, and reliable.



Orbea have been making frames for 100 years. They're committed to creating you the perfect bike, whatever your needs and wether you're looking for a frame to take on endurance journeys, or to join a crit race, the Orca will not disappoint.



With a 105 group-set you'll happily have plenty of gears to get over the hills.


THE ORCA GEOMETRY

Orca Racing Geometry is born from 100 years of design. It's a perfected balance of responsiveness and stability.



The position is aggressive to maximise body aerodynamics and efficiency. Handling is superb, both precise and intuitive.



The angles and dimensions are all considered across sizes to ensure more power on the road no matter the riders measurement. That means every rider has the chance to deliver more power and more speed.



SMOOTHNESS

External forces like terrain and road surface have an effect on both control and traction. To control the forces the Orca have refined the seat stays, reducing the cross sections and diameter and creating a thinner tubing so to smooth the road feel without compromising the rigidity. The natural flex patterns created by the carbon layout and minimal bulk of the top tube and seat stays delivers a dynamic smooth ride. The sensation of floating over the road is the result.



CARBON

Speaking of carbon ... Orca uses the most technologically advanced carbon construction in its most sophisticated frame set.



Orca uses the most technologically advanced carbon construction to make the most sophisticated fame possible - A complex and painstaking process with results you will appreciate on the road. The premier Orca OMR frame blends Toray T700, T800 and M40J Firbres. Prepeg carbon sheets are laser cut to minimize excess materials and overlap.



DYNAMIC STRUCTURAL STIFFNESS

The large majority of torsional and lateral loads are handles by the lower spine of the frame. The headtube, downtube and chainstays are shaped to resist twisting and transmit power to the rear of the wheel. There is no doubt about it, large cross-sections and resistance flex in the bottom of the frame translate directly to more watts on the road and a sensation of instantaneous power transfer.



SPECS

  • FRAME Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing, EC/DC compatible
  • FORK Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube
  • CRANKSET Shimano 105 R7000 34x50t
  • HEADSET Acros Alloy 1-1/2" Internal Cable Routing
  • HANDLEBAR OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, w/Di2 hole
  • STEM OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
  • SHIFTERS Shimano ST-7020
  • BRAKES Shimano R7070 Hydraulic Disc
  • CASSETTE Shimano 105 R7000 11-30t 11-Speed
    Consult other components
  • REAR DERAILLEUR Shimano 105 R7000 GS
  • FRONT DERAILLEUR Shimano 105 R7000
  • CHAIN KMC X11-EL
  • WHEELS Orbea wheel: Ready 19 with 12mm E-Thru hubset Shimano RS470 28H
  • TYRES Vittoria Zafiro V Rigid bead 700x28c
    Consult other components
  • SEATPOST OC2 Carbon 27.2 Offset 20
  • SADDLE Fizik Aliante R5
  • HANDLEBAR PLUGS Orbea Eva
  • FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • REAR WHEEL AXLE Orbea Thru Axle 12x142mm M12x2 P1 Solid
  • KIT TUBELESS
