STEM DEDA ELEMENTI VINCI

$180.00

Product Type: BICYCLE COMPONENTS

Vendor: Deda Elementi

Size
Out of Stock
Unavailable

Stem only. For information on the separate Handlebar, please go here.



With the newest Vinci range you'll find power, elegance and simplicity that's designed to turn heads. The latest Deda Elementi Vinci combination is not only a feat in raw elegance, its also an engineering innovation to minimise cockpit clutter. A more aero appeal is the want for any sartorial cyclist, and upgrading to the combined Vinci set will not disappoint. With no alteration in the efficiency of shifting, this newest stem on the market sets standards.

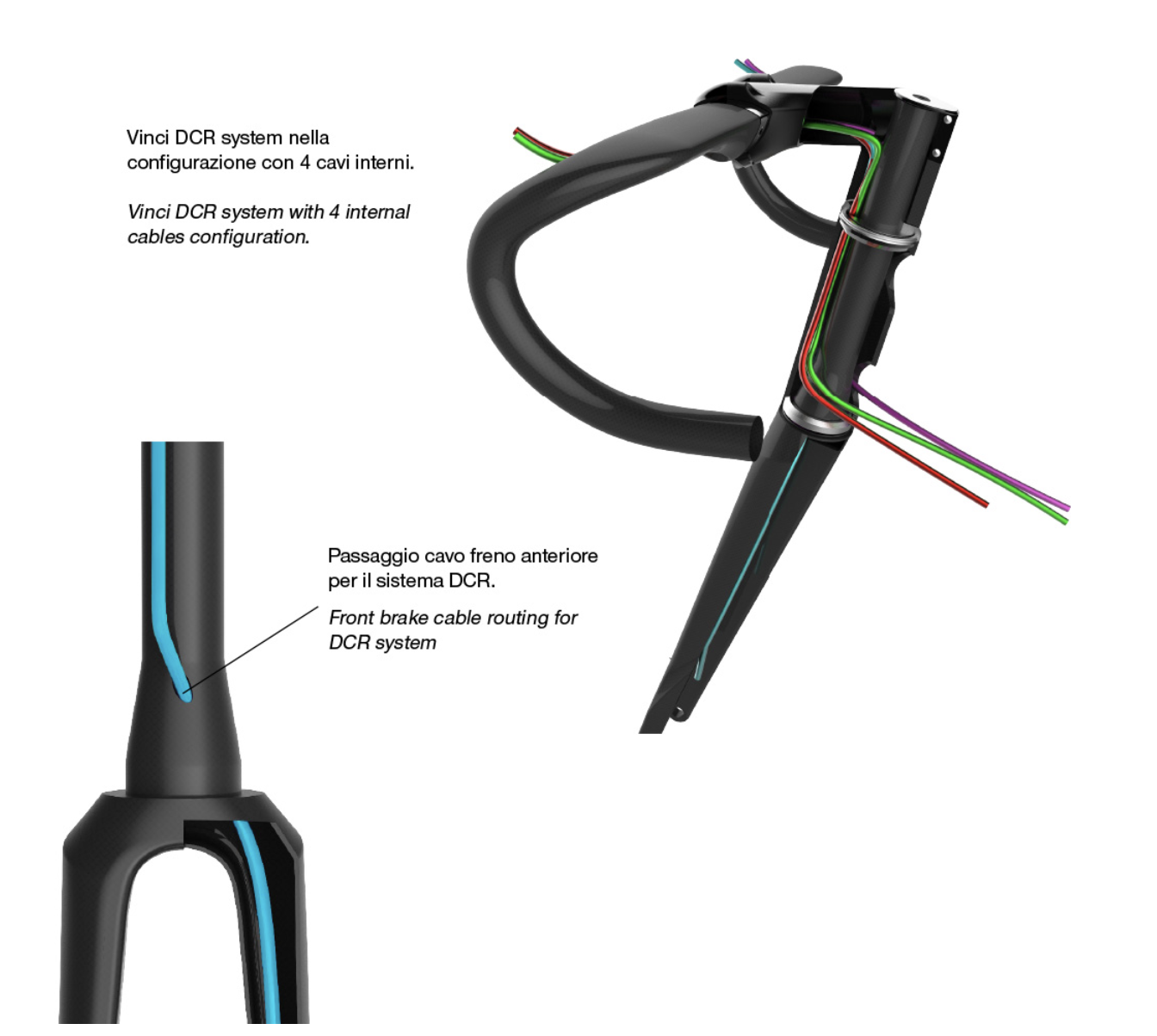

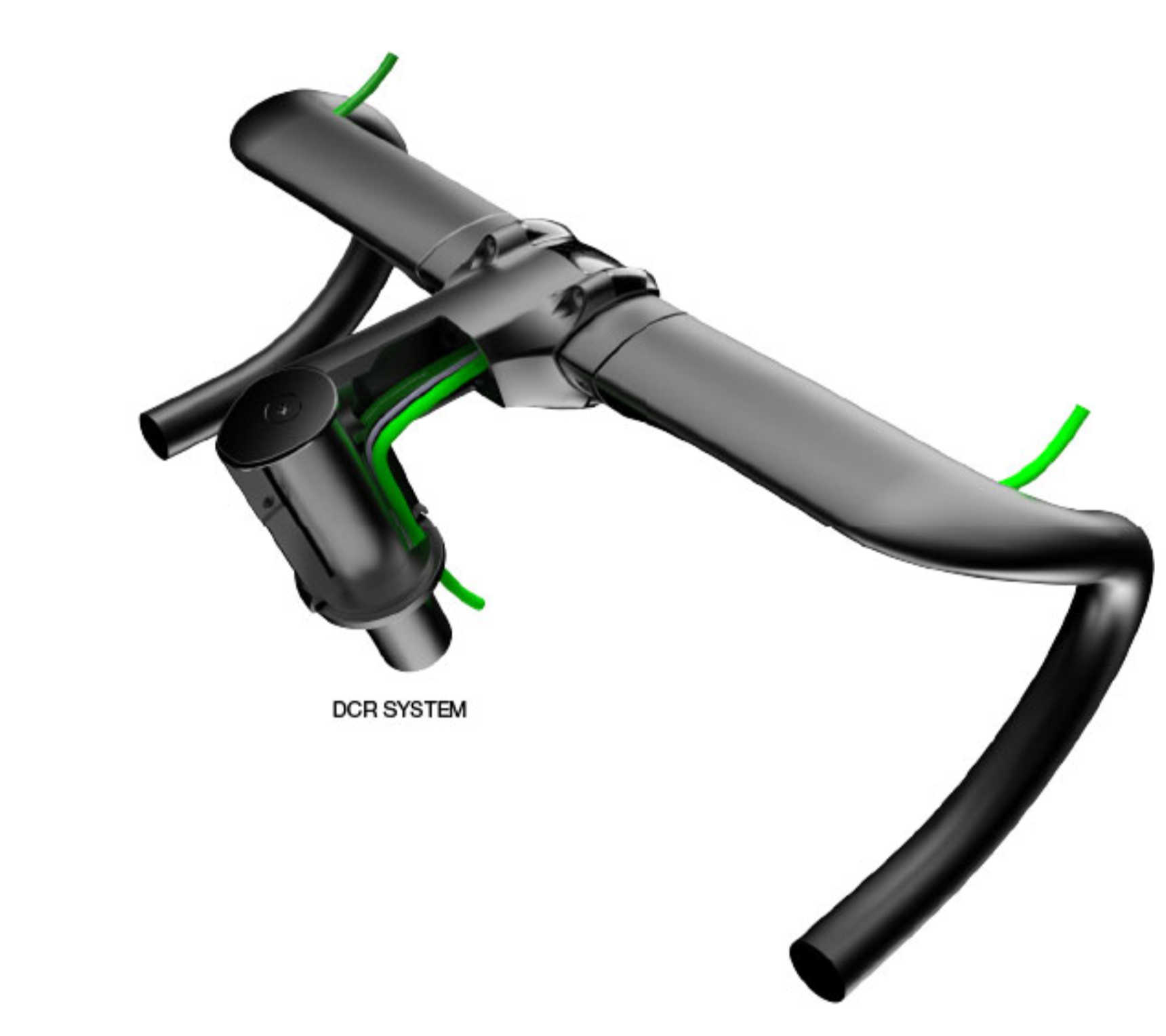

The Vinci is the most polyvalent stem on the market being compatible with traditional 1-1/8” fork steerer as well as 1-1/4”. The DCR system works with a standard tapered steerer with 1-1/8” upper diameter, but requires a 52mm (1.5”) upper headset bearing od. The stem leaves room at the back for the cables to fit the gap in between the headset bearing and the fork.

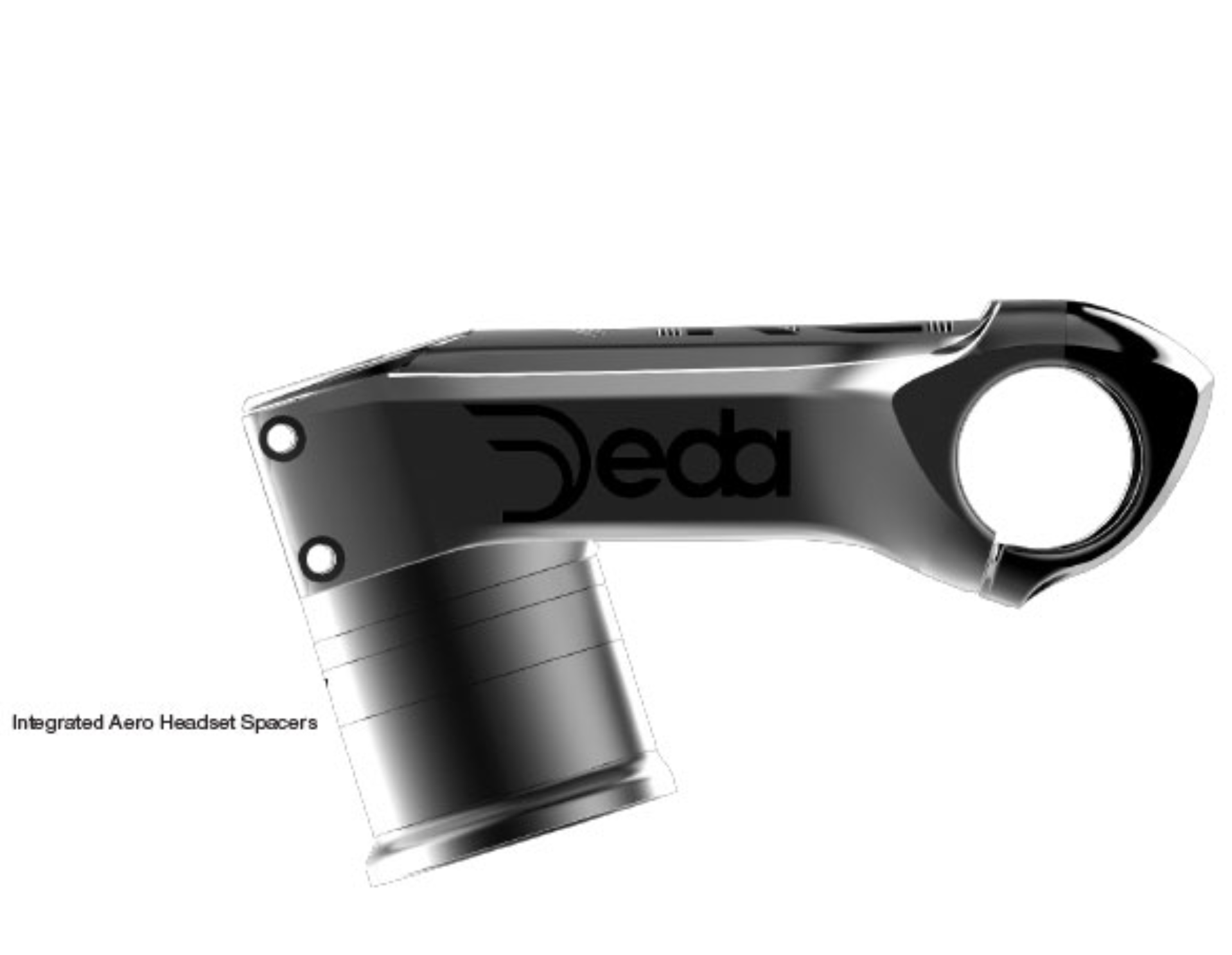

The Vinci stem system features special spacers that provide the channels for the housing cables. Spacers are designed with slits that let them pull open, they can be added or removed to get the fit right without having to remove all cables.


The innovative 3d forging technology and the flat design result in a better aero performance. The aero integrated topcap, headset spacers and alloy sleeve adapter for 1-1/8” fork steerer complete the line of accessories included. Available in polish on black (pob) finish.

Material

Screws

Angle

73°

Handlebar diameter

Fork steerer

1 1/4” (31,75mm), adapter included for 1 1/8”

Drop

(including the upper headset spacer), 40mm

Clamp Height

90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 140 mm

Weight(110m)

Finish

Note

Compatible with full internal cables routing (up to 4 cables);, Deda DCR headset is required

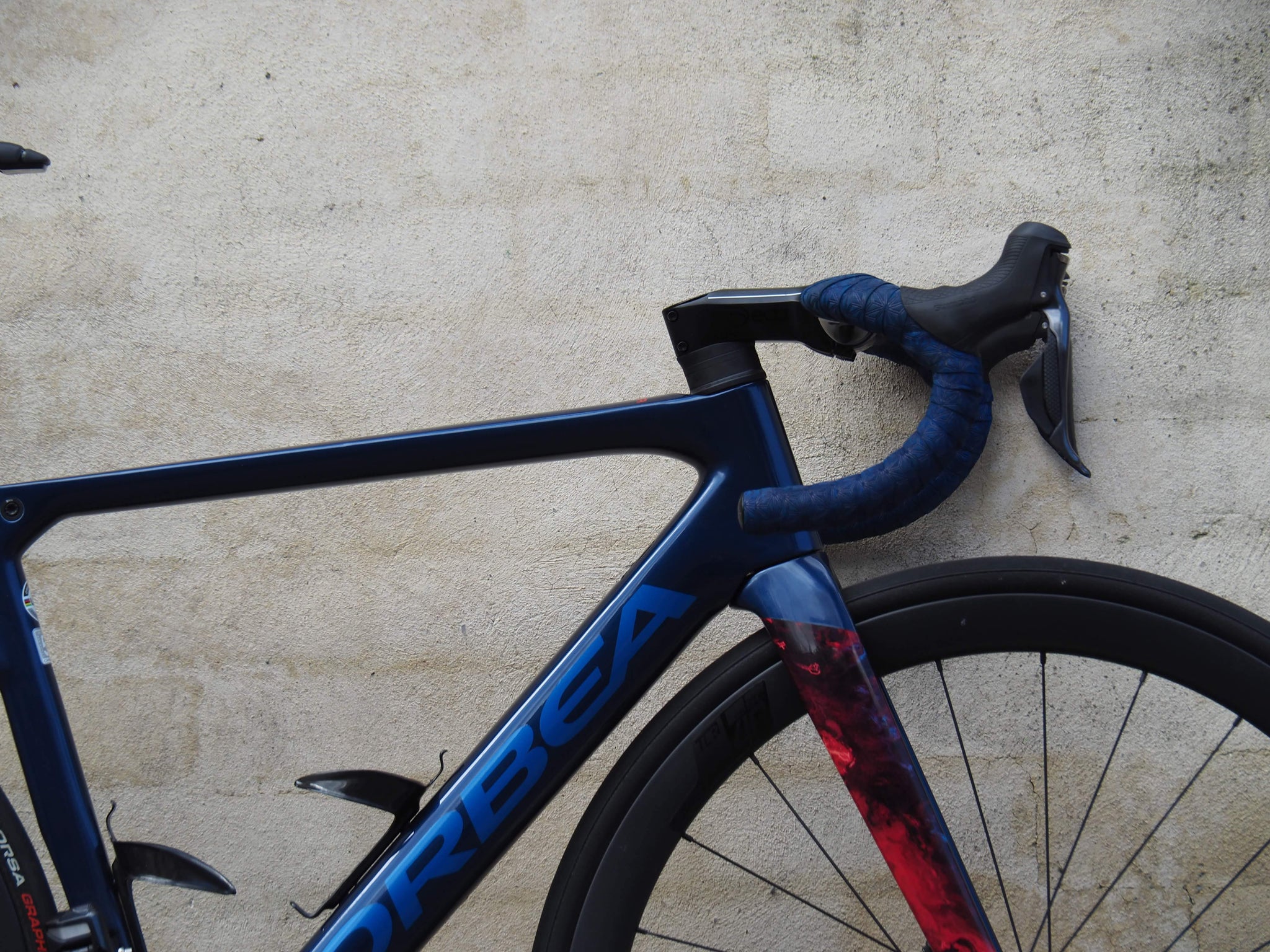

Needing further proof of the level of aesthetic standard? Head to our Instagram account where you'll find our installation upgrade on an Orbea Orca



Please note ; Bar not included. Find more information on the separate Vinci Bar here
