Engineered for seamless integration and top-tier performance, the Superbox V2 represents the next generation of stem design. Now upgraded with the RS spacers system, shared with the Alanera RS, this stem delivers unmatched cable routing versatility for today’s clean cockpit standards. Superbox V2 introduces premium GST-coated screws that offers exceptional resistance to corrosion and scratches. With support for DCR, S-DCR, Direct, and External routing, Superbox V2 adapts to virtually any frame and handlebar configuration. Whether you’re building a sleek road setup or an internal-routed gravel or MTB bike, this stem ensures optimal integration without compromise. Compatible with both 46 mm (1-1/8”) and 56 mm (1.5”) upper head tubes, it fits a wide range of modern bikes.

Do we have the adapter Alanera RS and Superbox DCR adapter for spacer? Find it here.

RECOMMENDED FOR:

 ROAD    GRAVEL    MTB

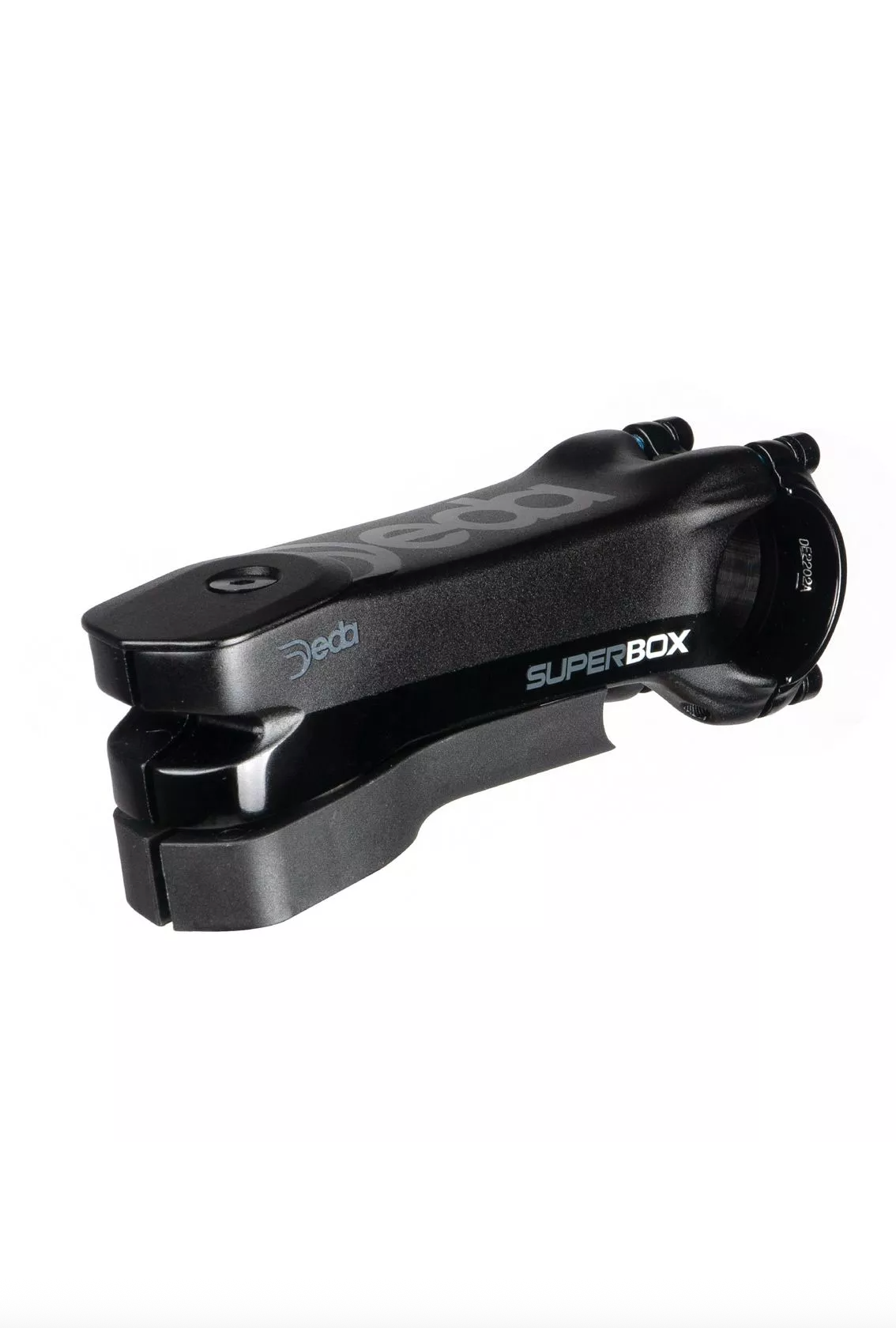

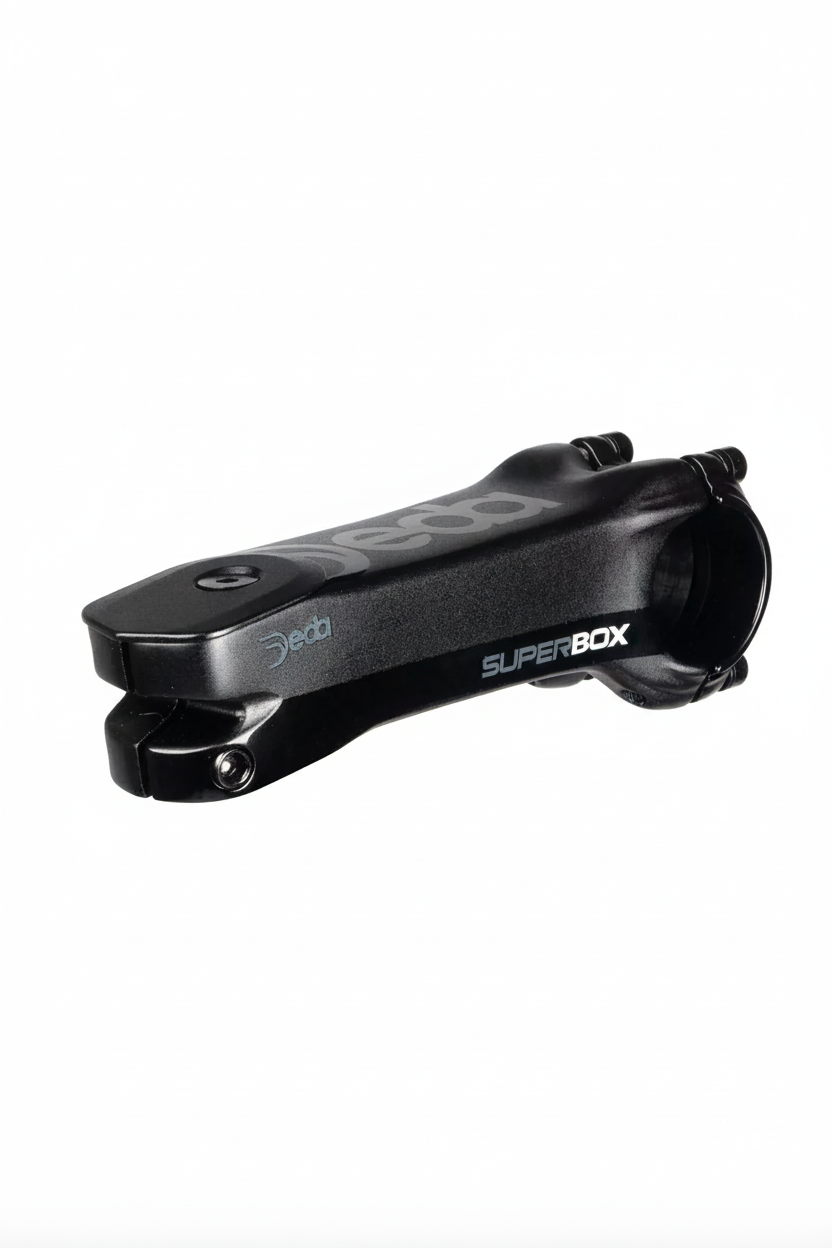

Superbox V2 stem
NOTICE

For the assembly of Superbox V2 on some bikes is required specific plug spacer (Colnago C64 Disc and V3RS Disc) or insert (Bmc, Cervélo and Factor).

For the assembly of Superbox V2 on some bikes is required specific compression ring: Bottecchia Emme4 (HDRS-COMPR-BOT); Dare VSRu (HDRS-COMPR-DA); Merida Scultura (HDRS-COMPR-ME); Bianchi Oltre Race, Sprint - Focus Izalco Max - Rose Xlite, Reveal, Backroad (HDRS-COMPR-ACROS).

In case of Ridley and Colnago V3 (MY23) for internal cable routing, we recommend to purchase separately the Alanera & Superbox top cap for D-Shape forks (cod. HDSBXTP-4DX).

Available to order in Australia from 80mm to 160mm

Tech Specs

• Material:Alloy 6061
• Screws:Steel, black (GST-coated)
• Angle:82°
• Diameter handlebar:31.7 mm
• Clamp height:32mm; 47 mm (with topcover)
• Fork Steerer:1 1/8” (28,6mm)
• Sizes:60mm (SBOX-V2-060)
  70mm (SBOX-V2-070)
  80mm (SBOX-V2-080)
  90mm (SBOX-V2-090)
  100mm (SBOX-V2-100)
  110mm (SBOX-V2-110)
  120mm (SBOX-V2-120)
  130mm (SBOX-V2-130)
  140mm (SBOX-V2-140)
  150mm (SBOX-V2-150)
  160mm (SBOX-V2-160)
• Weight:175g (110mm)
• Colour:POB (Polish on Black)

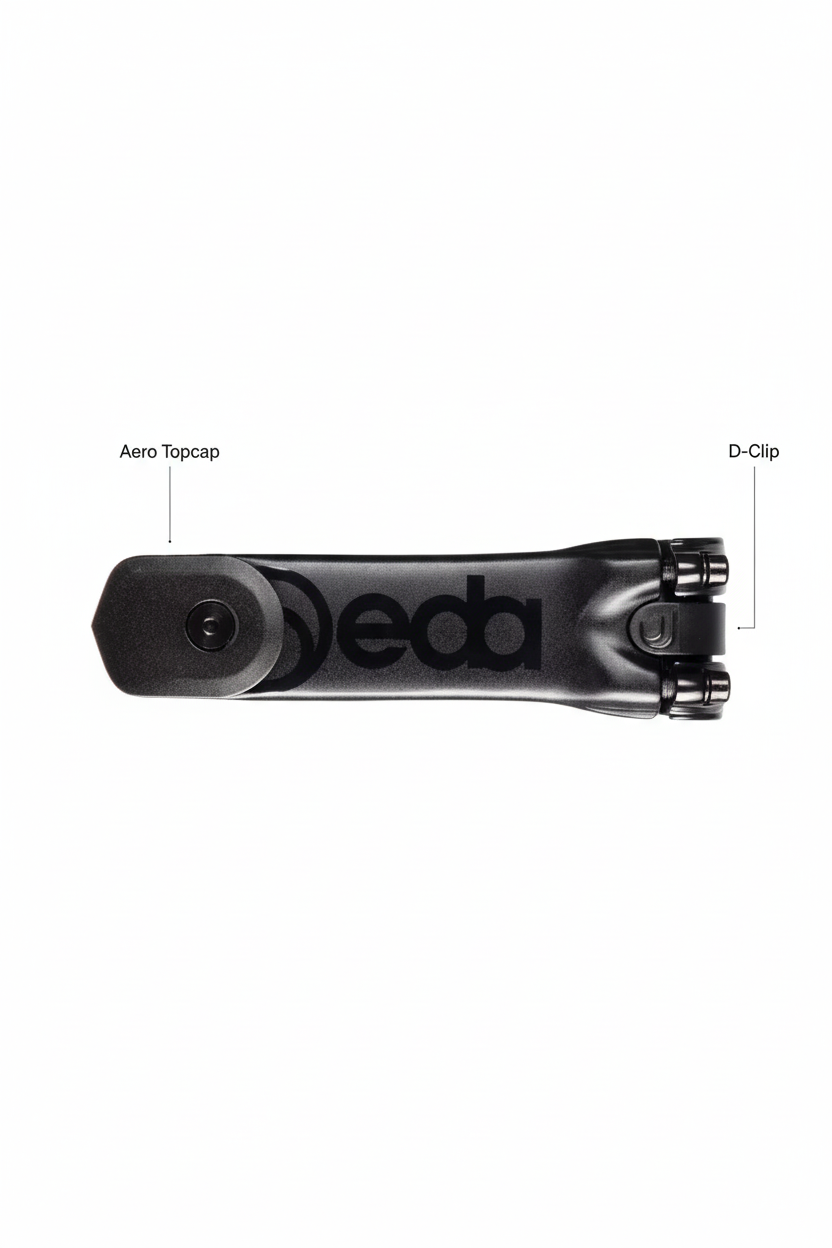

• Included accessories:integrated topcap, headset spacers and topcover for headtube 56mm & 46mm, D-clip insert.
• Note:
