SUPERBOX STEM

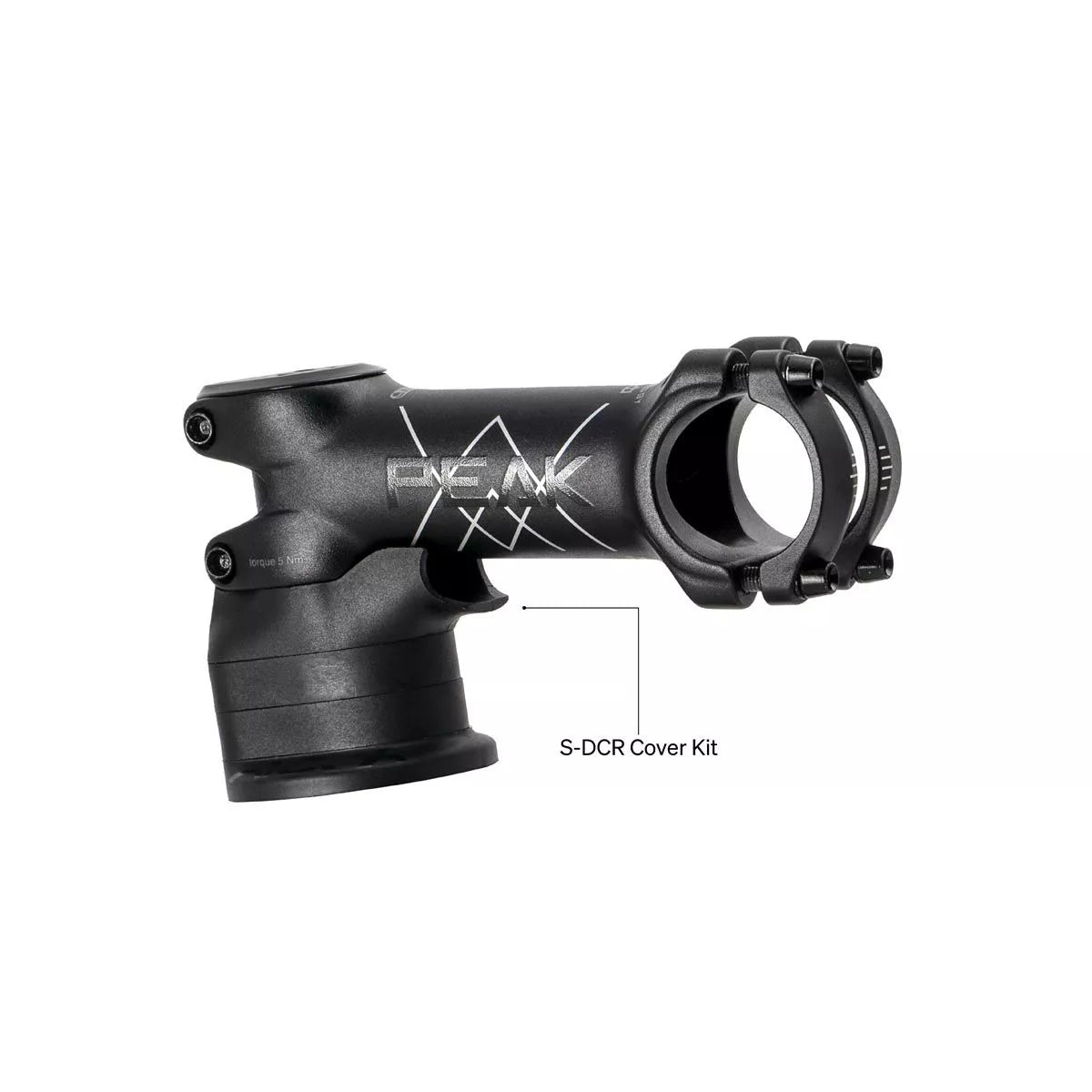

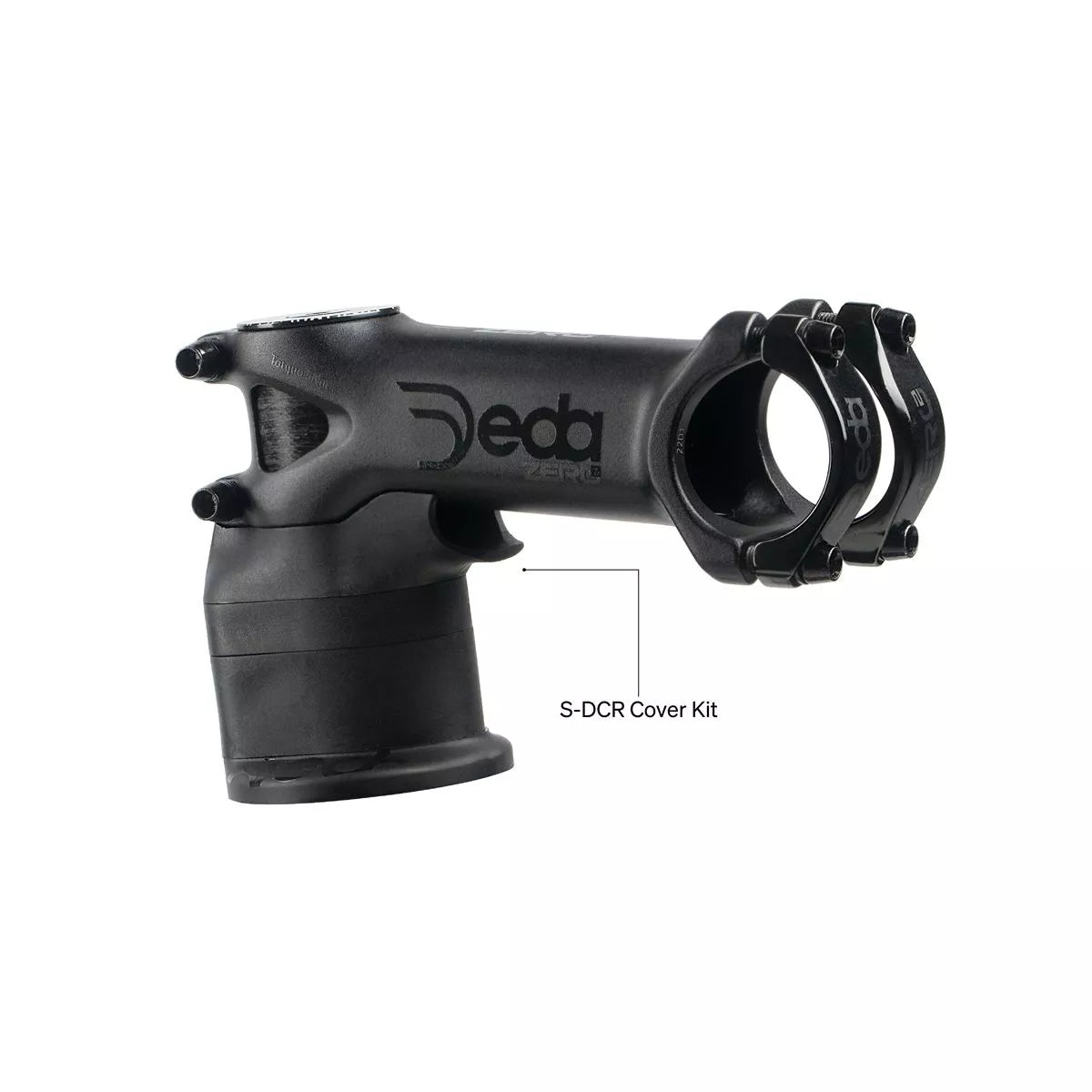

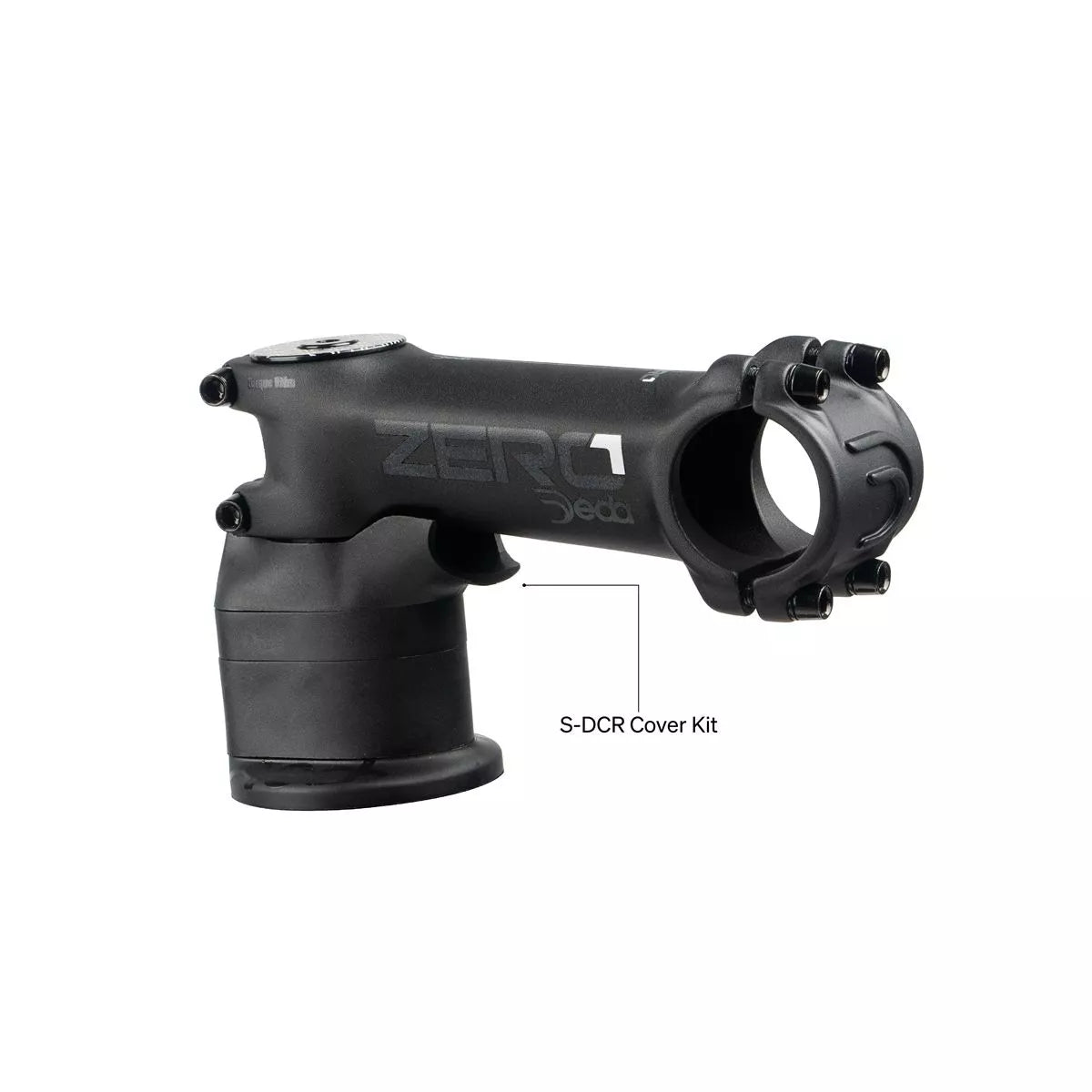

S-DCR cover kit is a further application of DCR system (Deda internal cable routing). This solution makes Deda Superzero, Superleggero, Zero100, Zero2, Zero1, Zero, Cross and Peak stem fitting a DCR frame, a quick and smart solution for most of bicycle brands. It allows the full integration of the cables into the frame, like the DCR headset, but leaving a portion of the cables visible under the stem. The system works with a standard tapered fork steerer (1-1/8” - 1.5”) and requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. S-DCR cover kit is available with 56mm topcover for standard DCR frames or with 46mm topcover for frames featuring a D-shape fork type.

TECH SPECS

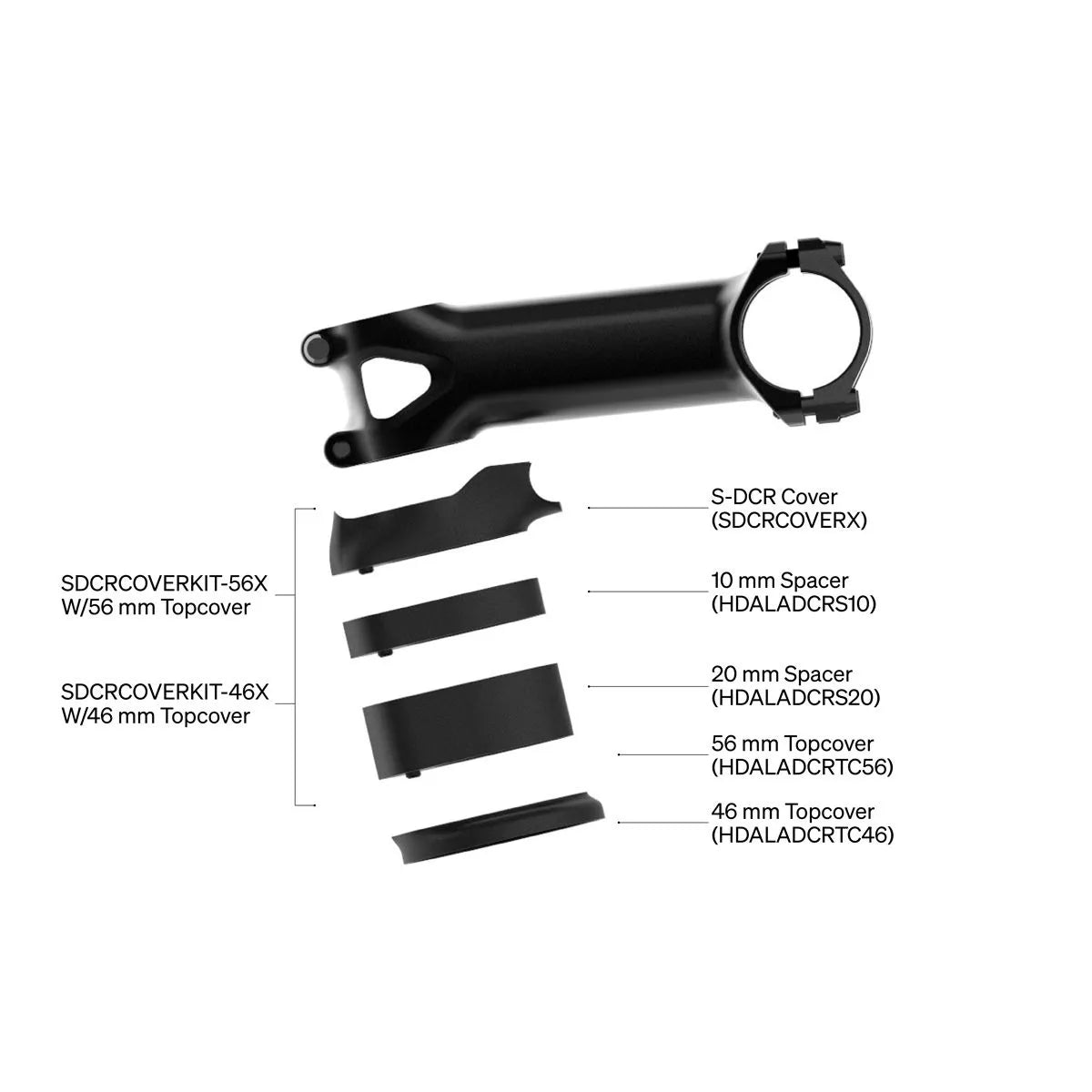

• Codes:SDCRCOVERKIT-46X (46 mm); SDCRCOVERKIT-56X (56mm)

• Headset model:integrated 1.5” - 1.5”

• Headtube:ø 56.0mm

• Top cover:Available ø 56mm or 46 (for D-Shape fork type)

• Stem compatibility:Superleggero, Superzero, Zero100, Zero2, Zero1, Zero, Cross, Peak

• Weight:48g
